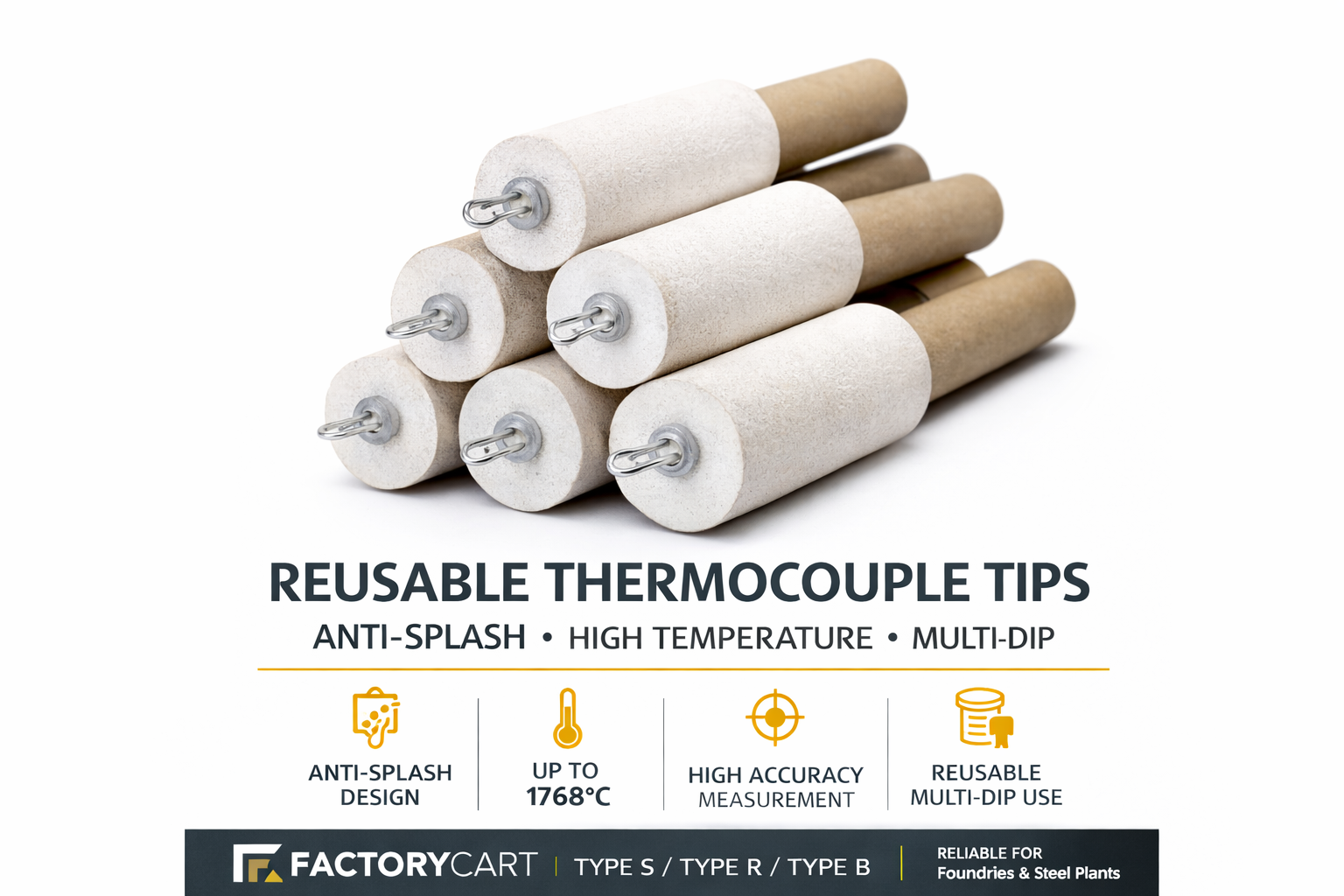

MULTI DIP THERMOCOUPLE TIPS WITH ZERO SPLASH

MULTI DIP THERMOCOUPLE TIPS WITH ZERO SPLASH

THERMOCOUPLE TYPE
TUBE LENGTH
Quantity



TIP TYPES : TYPE R/ TYPE S/ TYPE B

Used For

  • Immersion temperature measurement of molten metals.
  • Dip-Type Application using pyrometer.
  • Fits with any standard size receptacle/contact block connected to a pyrometer.
  • Multi-Dip Use without spurting and splashing.
  • Used in steel plants, foundries, furnaces, and kilns

Technical Details

  • Accuracy is ± 2 ℃
  • Temp Range 1000  ℃ to 1768 ℃
  • Ceramic Sleeve Length: Standard size is 100 mm, 75mm or 150 mm.
  • Customised lengths : We can offer customised length for sleeves and thermocouples
  • Johnson Matthey Platinum Rhodium wire used
  • 3 manual tests are conducted on every thermocouple for accuracy

Product Specification

  • Connector type is Mark IV (Male) and Mark VII (Female)
  • Supporter type is Plastic and Ceramic
  • Usage: Slag free Condition and avoids spurting and splashing.
  • Paper Tube ID 18 mm / OD 30 mm
  • Available in customisable paper tube sizes 300 mm and 400 mm

Procurement Info

  • 20% cheaper than our competition
  • Get samples to fully check the products
  • Quantity : 50pcs per Box
